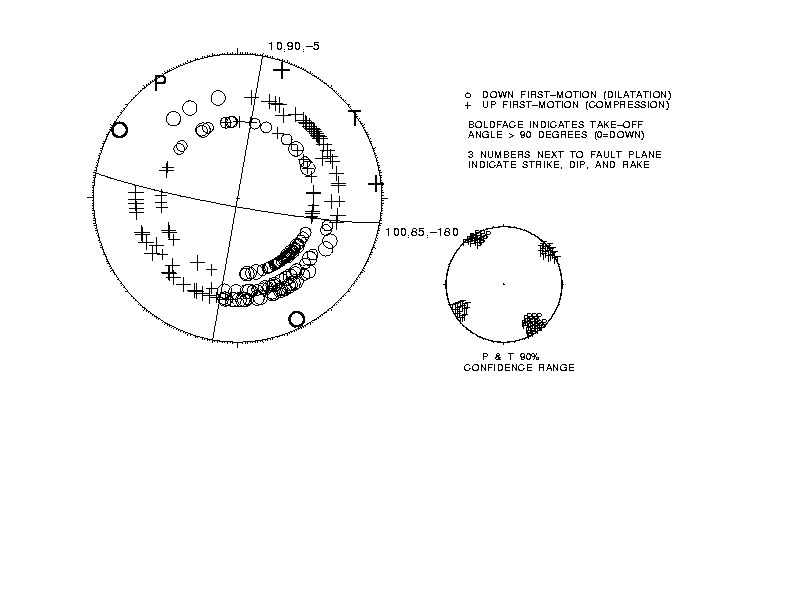

The focal mechanism shown below graphically portrays the orientation of the fault plane on which the earthquake occurred and the direction of relative motion on that plane. This information was automatically calculated from the first motion directions of the compressional (P) waves. A more detailed explanation describes how to interpret a focal mechanism. If more than one mechanism exists for this earthquake, then any of the solutions fit the first-motion data equally well.
USGS/CIT SOUTHERN CALIFORNIA SEISMIC NETWORK P FIRST-MOTION FOCAL MECHANISM (double-couple source assumed) Event Date & Time : 09/29/2004 22:54:54 GMT = Wed Sep 29 15:54:54 PDT 2004 Location : 35.3887 N, 118.6247 W : (35 deg. 23.32 min. N, 118.deg. 37.48 min. W) Depth : 2.3 km. deep ( 1.4 miles) Magnitude : 0.0 M # P First motions : 215 Strike uncertainty : 8 deg. Dip uncertainty : 23 deg. Rake uncertainty : 15 deg.
